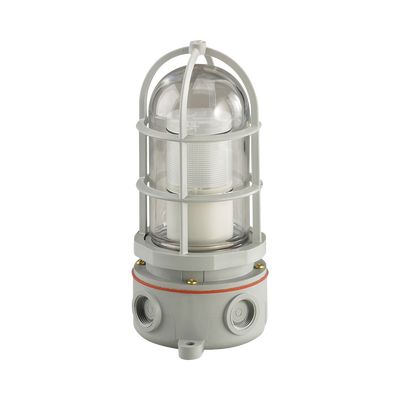

Lampara indicadora de estado LED UniStat, Single-High, Tri Color, Ubicaciónes peligrosas, UL y cUL CID2, 120Vca
FEATURES
The UniStat® is a LED based, multi-color, single-high status indicator.
Using the latest LED technology, this status indicator can produce three colors (Amber, Green and Red) or four colors (Amber, Blue, Green and Red) from a single light source.
The UniStat offers a choice of four integrated flash patterns – steady burn, slow flash, strobe flash and SimuStrobe™. SimuStrobe simulates the attention-getting flash rate of a strobe light but with a much more color-rich output. The user can choose a total of 12 possible flash/color combinations in the tri-color models and 16 in the quad-color models.
The USIX is protected in a durable polycarbonate housing utilizing 4-3/4-inch knockout conduit openings in the surface mount base. The outer glass globe is protected by a polycarbonate dome guard (included). Each model arrives preassembled and ready to surface mount.
SPECIFICATIONS
| Mount | Surface |
| Voltage | 24VDC |
| 120VAC | |
| Operating Current | 0.087 Amps at 24VDC |
| 0.058 Amps at 120VAC | |
| Light Source/Lamp Style | LED Array |
| Lamp Life | 50,000 Hours |
| Operating Temperature Minimum | -40 °F |
| Operating Temperature Maximum | 150 °F |
| Enclosure Rating | Type 4X |
| Ingress Protection (IP) | IP66 |
| Dome Guard | Included |
| Height | 11.070 in |
| Diameter | 4.750 in |
