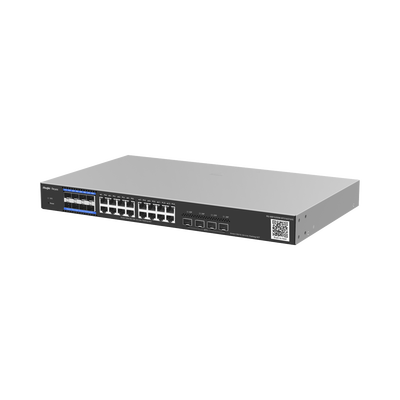

e-Lighten OLT / Switch Hibrido, Capa 3 con 8 Puertos PON 1G, 16 Puertos Ethernet 1G y 4 Puertos SFP+ 10G, perfecto para migrar a Soluciones de Fibra PON hasta 256 ONUs
Key Specification
Ports
8 x 1G PON/SFP Ports + 16 x 1G Ethernet Ports + 4 x 10G SFP+ Ports
Net Weight
2.9 kg (6.39 lbs.)
Number of Fan Modules
2
Switching Capacity
216 Gbps
Forwarding Rate
96 Mpps
Dimensions (W x D x H)
440 mm x 260 mm x 43.6 mm
(17.32 in. x 10.24 in. x 1.72 in.)
(17.32 in. x 10.24 in. x 1.72 in.)
Mean Time Between Failure (MTBF)
> 400000 hours
Power Supply Surge Protection
Common: 6 kV
Differential: 6 kV
Differential: 6 kV
Max. Number of VLANs
4094
MAC Address Table Size
16000
ARP Table Size
2000
Warranty
5 years
Certification
CE, CB, SDPPI, IPV6, SIRIM
