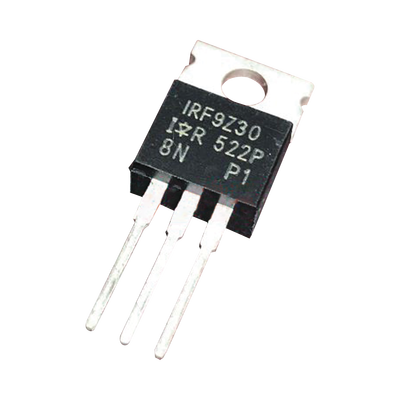

Transistor de Potencia MOSFET, Canal P, 50 Volt, 18 Amp., 0.14 Ohm, 74 Watt, TO-220AB, para Analizador III.
Transistor de Potencia MOSFET, Canal P, 50 Volt, 18 Amp., 0.14 Ohm, 74 Watt, TO-220AB, para Analizador III.
FET Type | P-Channel | |
Technology | MOSFET (Metal Oxide) | |
Drain to Source Voltage (Vdss) | 50 V | |
Current - Continuous Drain (Id) @ 25°C | 18A (Tc) | |
Drive Voltage (Max Rds On, Min Rds On) | 10V | |
Rds On (Max) @ Id, Vgs | 140mOhm @ 9.3A, 10V | |
Vgs(th) (Max) @ Id | 4V @ 250µA | |
Gate Charge (Qg) (Max) @ Vgs | 39 nC @ 10 V | |
Vgs (Max) | ±20V | |
Input Capacitance (Ciss) (Max) @ Vds | 900 pF @ 25 V | |
FET Feature | - | |
Power Dissipation (Max) | 74W (Tc) | |
Operating Temperature | -55°C ~ 150°C (TJ) |
